Agricultural Machinery Lubrication System
High-efficiency and reliable lubrication systems are essential to ensure continuous and stable operation of agricultural machinery under harsh conditions. Modern agricultural equipment often works under high loads, dusty, and humid environments. Without proper lubrication, mechanical components are prone to accelerated wear and unexpected downtime.
CISOLUBE provides complete automatic lubrication system solutions for agricultural machinery, ensuring every lubrication point receives accurate supply of lubricants. The system effectively reduces maintenance time, prevents unexpected failures, and significantly improves operational efficiency.
Grease Lubrication Systems For grease lubrication, CISOLUBE has specially designed GT PLUS, GP203, and GM lubrication pumps. They feature robust construction, high protection levels, and easy maintenance, providing stable grease supply even under harsh conditions.
Oil Lubrication Systems For light oil lubrication, the company has developed EM2, PMV, and PMN lubrication pumps. These pumps provide precise and continuous oil delivery, ideal for chain lubrication in agricultural machinery, ensuring all moving components receive clean and efficient lubrication protection.
Benefits of CISOLUBE Automatic Lubrication Systems By integrating CISOLUBE automatic lubrication systems, agricultural machinery users can reduce downtime, lower maintenance costs, and significantly extend equipment life, enabling efficient year-round operation.
Produk Agricultural Machinery Lubrication System
Pompa Pelumasan Oli EM2
Pompa pelumasan oli EM2 adalah unit ringkas yang dirancang khusus untuk aplikasi dengan ruang pemasangan terbatas. Ukurannya yang kecil menjadikannya solusi ideal untuk memberikan perlindungan pelumasan terpusat pada mesin ringkas.
Pompa Pelumasan Rantai PMV
PMV adalah pompa piston multi-titik, digerakkan oleh sistem kam dan dirancang untuk memasok beberapa jalur independen, dengan kapasitas maksimum 12 saluran keluar. Dikenal karena daya tahan dan keandalannya, pompa ini sangat sesuai untuk sistem pelumasan yang ditempatkan di lingkungan yang menantang.
Pompa Pelumasan Rantai PMN
Sistem pelumasan PMN, terdiri dari reservoir 4 atau 7 liter dengan filter hisap, komponen metering, dan sikat, memungkinkan penyesuaian setiap titik pelumasan dengan mengubah komponen metering. Volume dapat diatur sebelumnya, dan total keluaran oli sistem juga dapat disesuaikan dengan langkah gerak plunger PMN.
GT PLUS Pompa Pelumasan Otomatis Progresif
Pompa GT adalah pompa piston yang dirancang untuk berfungsi optimal dengan hingga lima unit pemompaan. Desainnya sangat kompatibel dengan sistem progresif atau saluran tunggal.
GM PLUS Pompa Pelumas Otomatis Progresif
Pompa piston GM dirancang untuk beroperasi secara efisien dengan hingga lima unit pemompaan. Desainnya sangat cocok untuk sistem progresif atau sistem jalur tunggal, memungkinkan lima jalur pelumasan independen secara bersamaan.
Pompa Pelumas GP203
GP203 adalah pompa plunger tekanan tinggi dengan hingga tiga pasang plunger dan dirancang untuk melumasi hingga 150 titik dengan menggabungkan fitur sistem pelumasan progresif dan multi-titik.
VSD Blok Distributor Oli
Blok manifold distribusi oli VSD secara akurat mendistribusikan gemuk atau oli dari pompa pelumasan ke setiap titik pelumasan sesuai dengan rasio yang telah ditentukan, memastikan pelumasan yang seragam dan andal untuk semua komponen yang bergerak.
Katup Distributor DSP
DSP adalah katup pembagi progresif blok tunggal yang ringkas, sempurna untuk aplikasi dengan keterbatasan ruang.
Katup Distributor Progresif DXF
Distributor DXF terdiri dari tiga elemen, setidaknya blok pertama, blok tengah, dan blok ekor, dapat menyediakan 3 hingga 24 titik pelumasan. Ada banyak ukuran perpindahan yang dapat dipilih. Setiap saluran keluar oli dapat dilakukan secara paralel, peningkatan jumlah oli ganda.
VSP Katup Distributor
Katup distributor modular VSP menjamin pelumasan yang presisi dan ideal untuk semua jenis kondisi yang menantang, menjadikannya solusi yang sangat baik untuk distribusi pelumas.
Tangki Oli
Tangki oli pelumas adalah wadah penyimpanan untuk oli pelumas yang digunakan pada mesin dan peralatan. Ini adalah komponen kunci dalam mengurangi gesekan dan memastikan pengoperasian mesin yang lancar.
Sikat Pelumasan Rantai
Sikat pelumasan rantai adalah alat yang digunakan untuk mengaplikasikan pelumas secara merata pada rantai, mengurangi gesekan dan memperpanjang umur rantai.

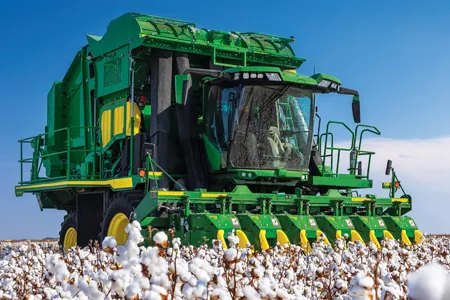

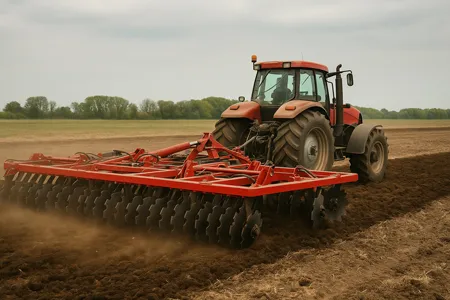

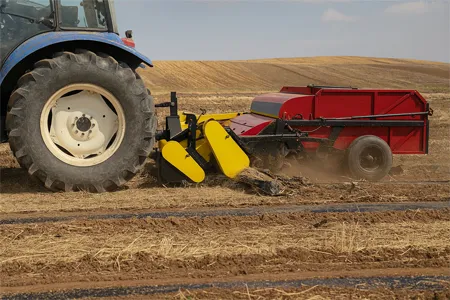

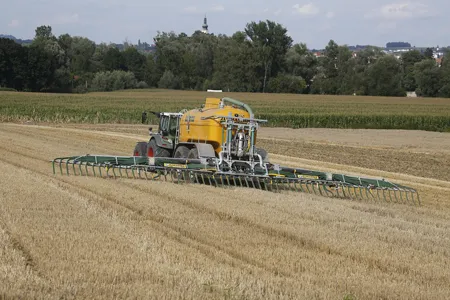

Application of Agricultural Lubrication Systems

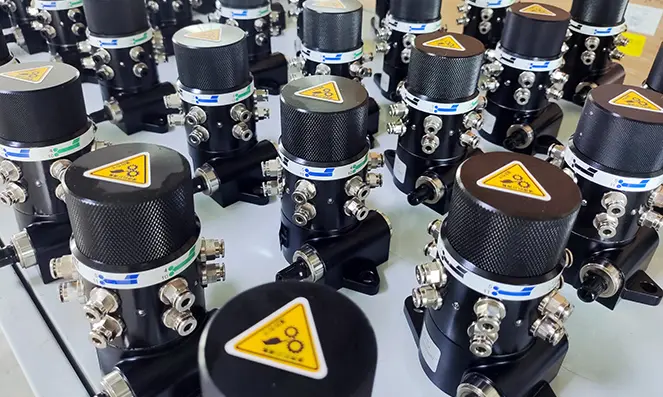

Features of Agricultural Lubrication Systems
- Install once, benefit long-term
- Continuous operation during peak seasons, improving efficiency
- Low maintenance cost, precise lubrication
- Smoother operation of key components, more durable
- Dustproof and waterproof, suitable for harsh working conditions
- Compatible with grease and oil for various agricultural machinery

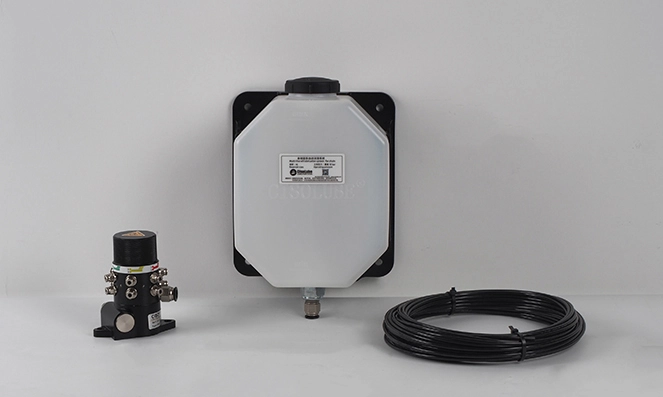

Principle of Agricultural Automatic Lubrication Systems
Automatic lubrication systems for agricultural machinery deliver oil or grease automatically, periodically, and in precise amounts while the equipment is running. Lubrication pumps driven electrically or mechanically deliver lubricants through distributors or pipes to each lubrication point, keeping bearings, chains, gears, and other critical components well-lubricated, reducing wear and extending service life. A controller governs the lubrication cycle intervals and duration, ensuring each point receives the right amount of lubricant at the right time.

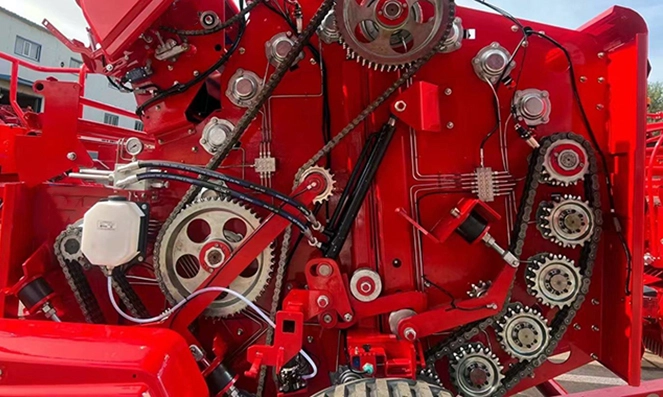

Agricultural automatic Lubrication Systems Industries

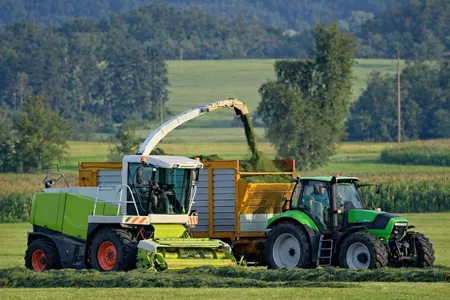

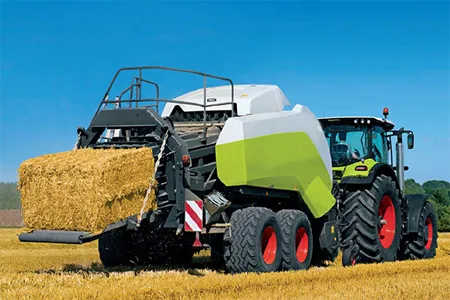

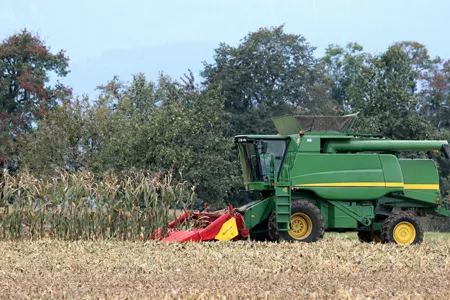

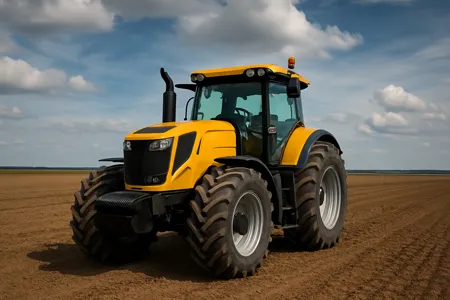

CISO agricultural lubrication systems are widely used across a broad range of agricultural and related industries. Common applications include tractors, combine harvesters, balers, planters, sprayers, and forage harvesters. Beyond traditional farming, these systems are also deployed in forestry machinery, construction equipment operating in agricultural settings, and irrigation systems. Any machinery with multiple lubrication points operating in dusty, wet, or high-load environments can benefit from CISO's automatic lubrication solutions.
Progressive lubrication systems vs single line lubrication systems vs dual line lubrication systems vs chain lubrication systems
| Feature | Progressive Lubrication Systems | Single-Line Lubrication Systems | Dual-line Lubrication Systems | Agricultural Machinery Lubrication System |
|---|---|---|---|---|
| Definition | Progressive lubrication system is an efficient lubrication system used for mechanical equipment, providing lubricant progressively to different parts of the equipment to ensure each part receives an adequate amount of lubrication. | The lubrication pump automatically delivers lubricant to the lubricant dispenser via a single supply line. Each dispenser serves only one lubrication point and can be adjusted to provide the exact dose of grease or oil required. | Dual-line systems can be used on large systems with dispersed lubrication points that require varying lubrication quantities. These systems utilize two main lines that are supplied alternately with lubricant from a high-pressure pump. | An automatic lubrication system for agricultural machinery is an intelligent system that provides quantitative and timed lubrication to key components of agricultural machinery. Through a lubrication pump and distribution device, it precisely delivers grease or lubricating oil to each friction point, ensuring stable operation of the equipment even under high loads, dusty, and humid environments. |
| Basic Components |
|
|
|
|
| Working Principle | The lubricant is pumped through the main lines to the progressive distributor with the pump. The lubricant is delivered "progressively" to the friction point. The circulation of a progressive distributor is monitored optically or electrically. | The dosing values are impinged on the main line with the pump – dynamically operating metering valves with a pressure surge, static operating dosing elements with slow pressure build-up. These thus transfer the respective quantity of the lubricant to the friction point. During the following relief phase, the lubricant is restacked in the dosing valves for the next lubrication process. | CISO dual-line systems can be used on large systems with dispersed lubrication points that require varying lubrication quantities. These systems utilize two main lines that are supplied alternately with lubricant from a high-pressure pump via a change-over valve at up to 400 bar (5,800 psi). Branch lines, along the main lines, are connected with dual-line metering devices to supply a large volume of lubricant to the lubrication points. Within large dual-line systems, end-of-line pressure switches are used to control and monitor the system. | Automatic lubrication systems for agricultural machinery deliver oil or grease automatically, periodically, and in precise amounts while the equipment is running. Lubrication pumps driven electrically or mechanically deliver lubricants through distributors or pipes to each lubrication point, keeping bearings, chains, gears, and other critical components well-lubricated, reducing wear and extending service life. |
| Advantages |
|
|
|
|
