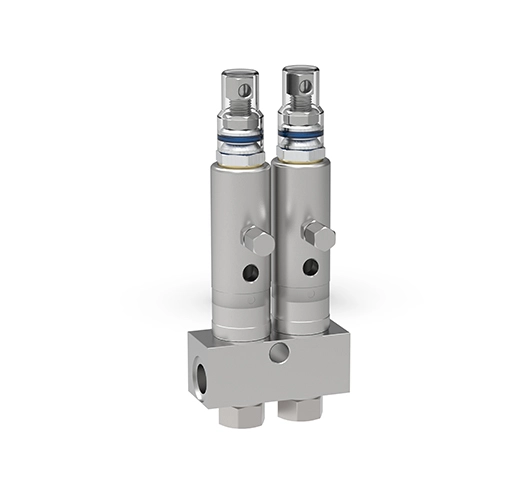

VL-1 Metering Valves
The VL-1, VL-1X series metering devices are for single-line, high-pressure centralized lubrication systems dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI 2. Output is externally adjustable. An indicator pin permits visual check of metering device operation. Individual metering devices can be removed easily for inspection or replacement.
Technical Information of VL-1 Metering Valves
| TECHNICAL CHARACTERISTICS | |
| Product name | VL-1 |
| Outlets | 1 to 6 |
| Metering quantity | 0.131 to 1.31 ml（adjustable） |
| Lubricant | grease NLGI 0, 1, 2 |
| Operating temperature | -26 to 176℃ |
| Operating pressure | 128 to 241 bar |
| Material | Carbon steel or stainless steel |
| Connection main line | 3/8 NPT (F) |
| Connection outlet | 1/8 NPT (F) |
| Lubrication system | single line lubrication system |

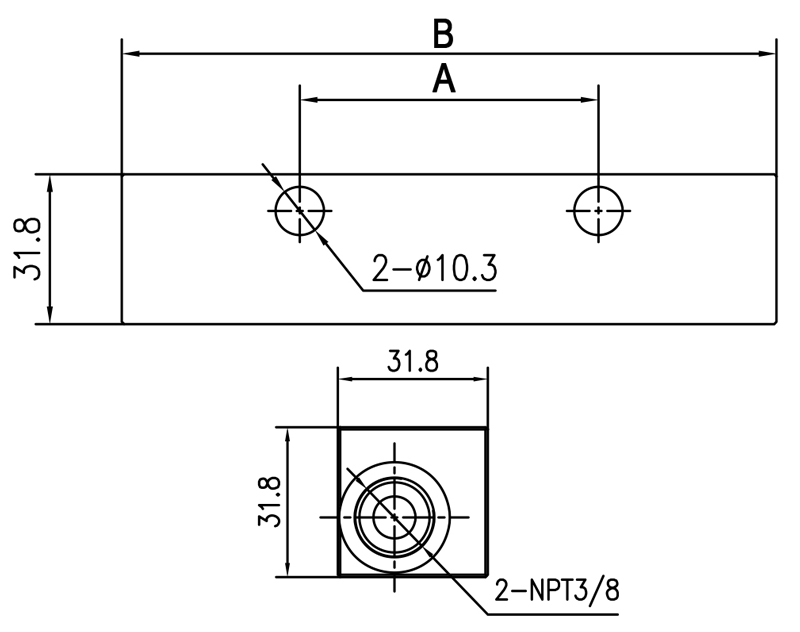

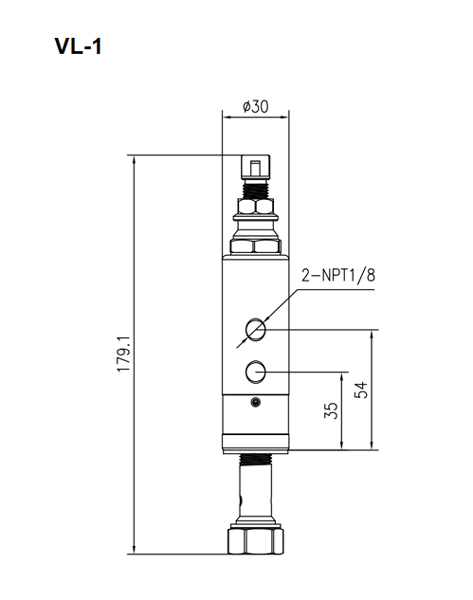

Technical Drawing of VL-1 Metering Valves
| Part number | Connection outlet |
| VL1000 | 1/8 NPT (F) |
| Part number | Output Number | A/mm | B/mm |
| DBVL01 | 1 | - | 63 |
| DBVL02 | 2 | - | 76.4 |
| DBVL03 | 3 | 31.7 | 107.5 |
| DBVL04 | 4 | 63.4 | 139 |
| DBVL05 | 5 | 95.1 | 170.5 |
| DBVL06 | 6 | 126.8 | 202.7 |
Characteristics of VL-1 Metering Valves
Shipped with manifolds from 1 to 6 ports (lubrication points)
Output is externally adjustable
Each indicator pin permits visual check of injector operation
Individual metering devices can be removed easily for inspection or replacement
Includes fitting for feed lines via alternate outlet port
Cisolube offers custom grease distributor with wide selections, Contact now.
