HBP Hydraulic Pump
The HBP high-pressure hydraulic pump is a hydraulically driven double-acting piston pump. Equipped with single-line parallel grease metering assemblies, this lubrication pump can operate in conjunction with a cyclic timing control system, making it an ideal solution for single-line centralized lubrication systems.
When lubrication points require grease supply, the hydraulic oil passage opens. The pump is activated by energizing or de-energizing the solenoid valve installed at the pump front end. After the lubricator completes grease filling, the pressure in the main pipeline rises to the preset value. The pressure switch then feeds back a signal to the control system, which immediately cuts off the hydraulic oil circuit, releases system pressure, and initiates the next lubrication cycle.
Technical Information of HBP Hydraulic Pump
| TECHNICAL DATA | |
Number of oil outlet | 1 |
Outlet thread | 1/4 NPTF female thread (bare pump), 3/4 NPTF female thread (barrel pump) |
Displacement | 8.8 cc/cyc |
Working pressure | Max. 30 MPa; 4350 psi |
Bare pump specification | 16 kg, 27 kg, 41 kg, 55 kg, 180 kg |
Grease barrel capacity | 27 kg, 41 kg, 55 kg |
Lubricant type | OIL, 000#, 00#, 0#, 1#, 2# |
Boost ratio | 15:1 |
Hydraulic oil working pressure | 20 ~ 205 bar |
Hydraulic oil flow rate | 0.25–3.0 L/min |
Hydraulic oil operating temperature | Max. 93 ℃ |
Lubrication pump operating temperature | -40 ~ 65 ℃ |
Solenoid Valve Parameters
Working Pressure | 207 bar |
Operating Temperature | -40 ~ 100 ℃ |
Mounting Torque | 26 ~ 28.5 N·m |
Voltage | 24VDC |

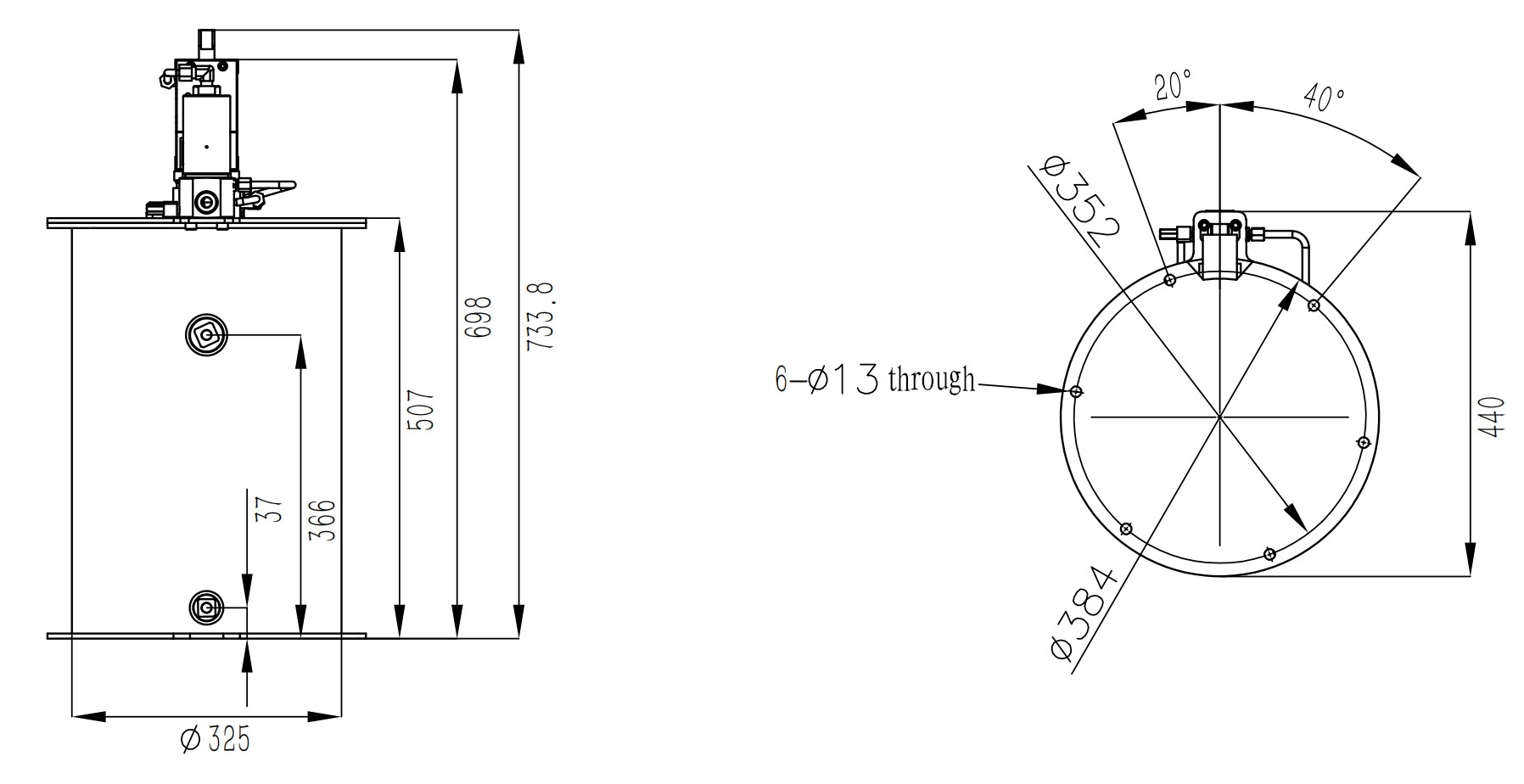

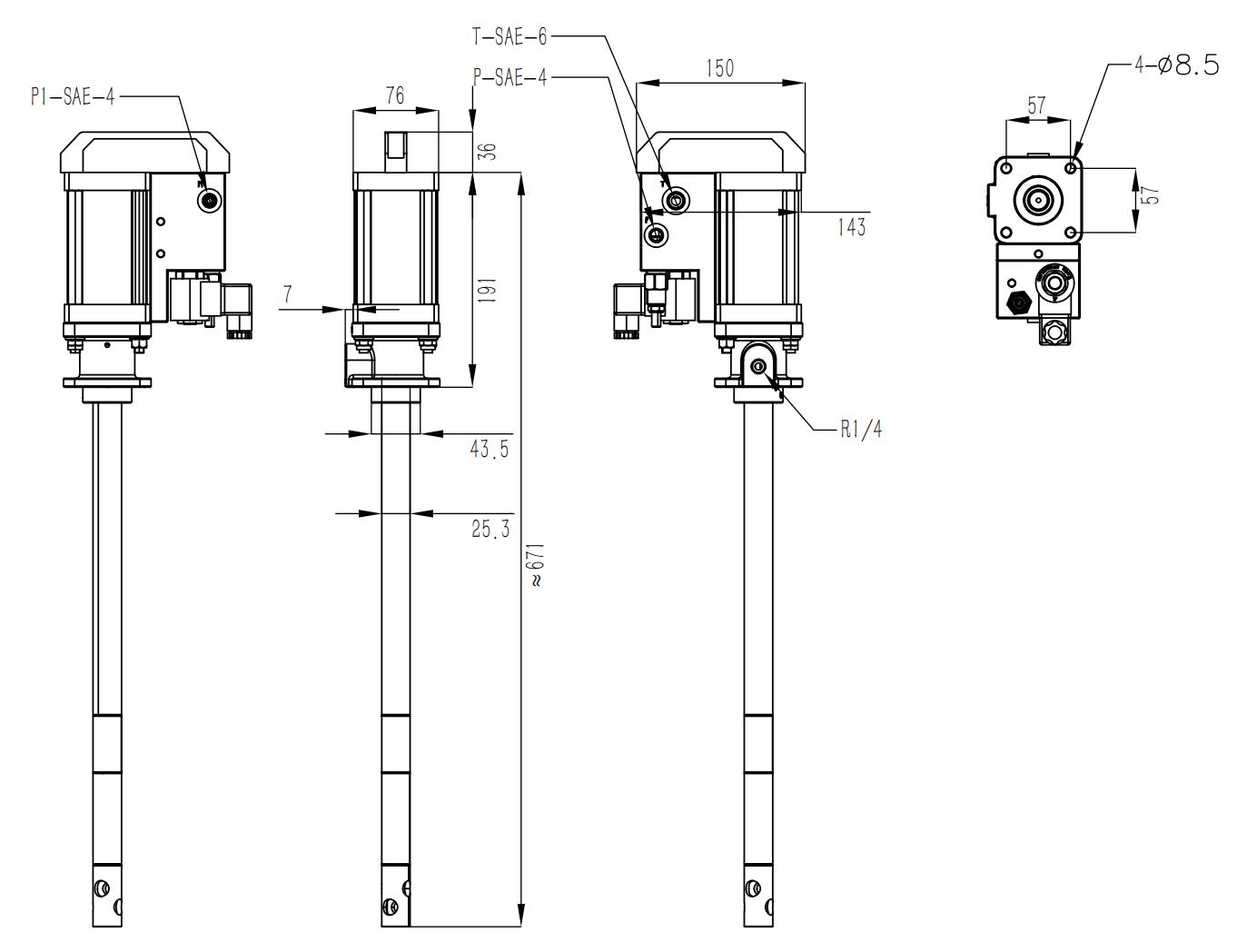

Technical Drawing of HBP Hydraulic Pump (mm): 27kg
Features of HBP Hydraulic Pump
Multiple specifications available for selection
Driven by hydraulic motor
Double-acting piston pump structure
Excellent applicability and durability, ensuring stable operation even in harsh working environments
Application Industries of HBP Hydraulic Pump
Construction machinery
Mining equipment
Industrial equipment
Single-Line Lubrication Systems
